Grumman American AA-5B Tiger

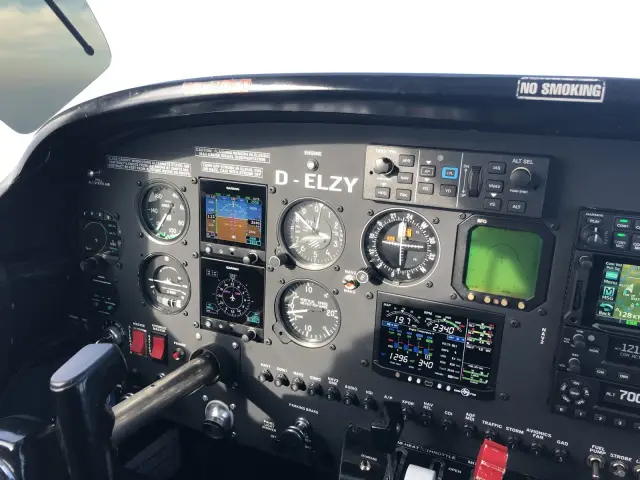

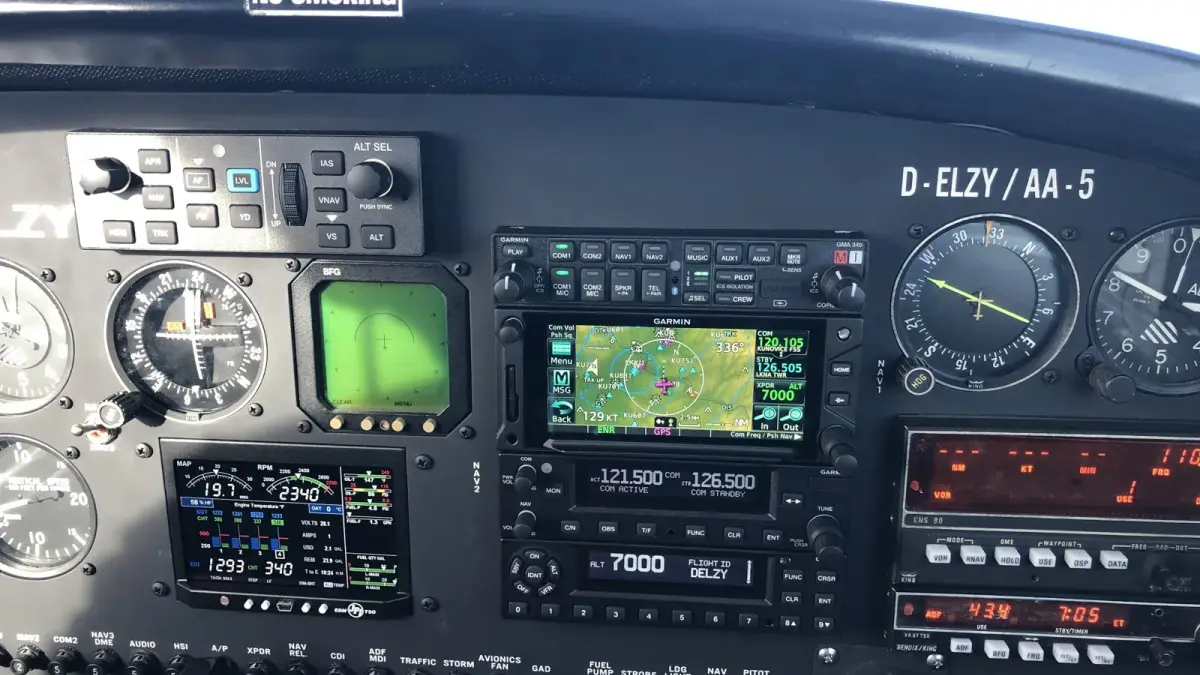

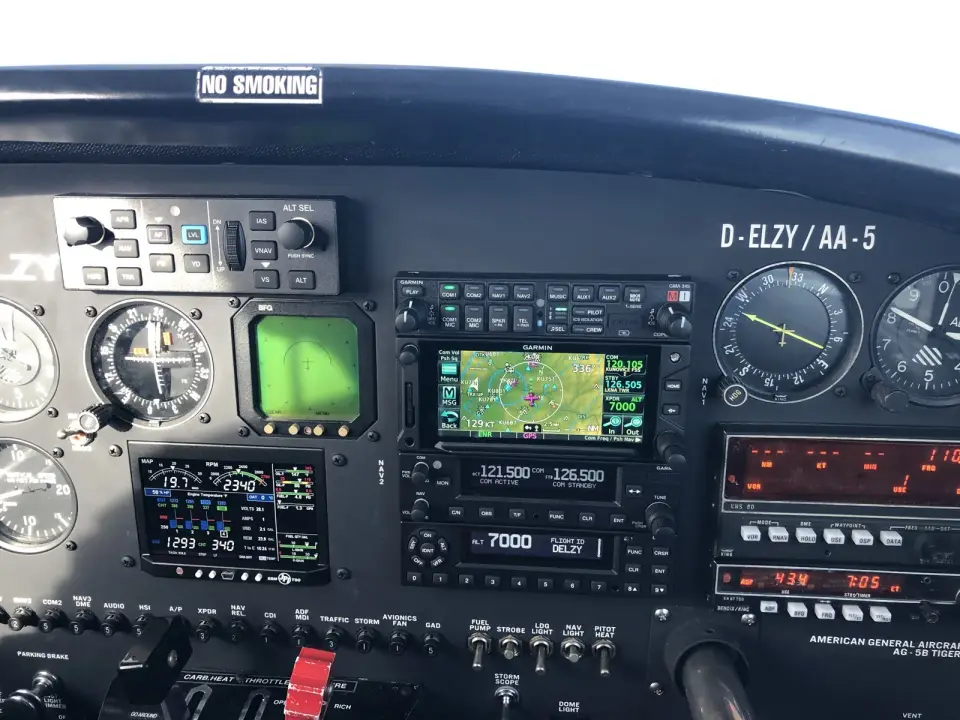

D-ELZYDual G5, GTN 650Xi and GFC 500 autopilot in a tailor-made Tiger panel.
- Aircraft
- Grumman American AA-5B Tiger
- Scope
- Avionics · Autopilot · Instrument panel
- Location
- Kunovice, Czechia
A Grumman AA-5B Tiger received a tailor-made avionics panel built around dual G5 flight instruments, a GTN 650Xi navigator, a GFC 500 autopilot and a JPI engine monitor, with traffic awareness and ADS-B Out. Panel and wire harness were produced in our workshop to the owner's requirements.

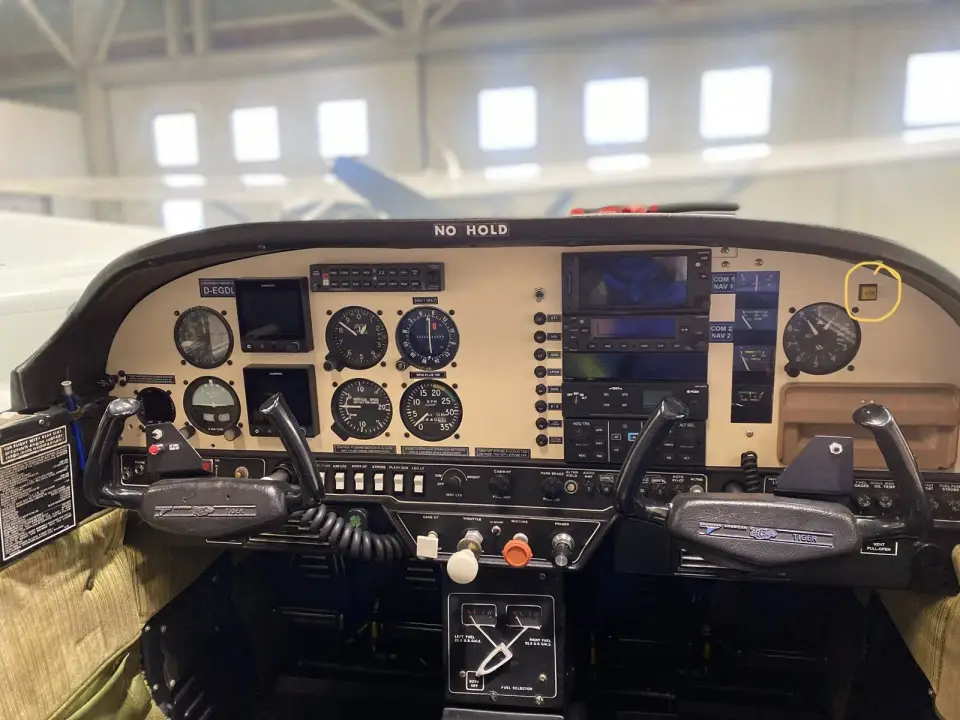

Before and after
Installed equipment
- Garmin GTX 335 ADS-B Out transponder

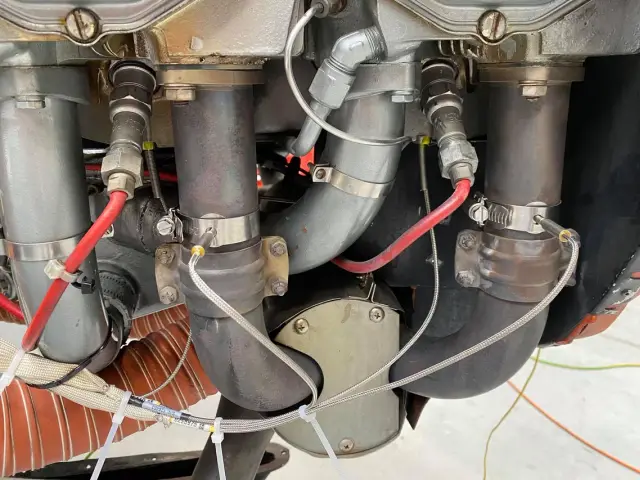

- JPI EDM 900 primary engine information system
- AirTraffic AT-1 traffic system with external display
- COM antenna replacement

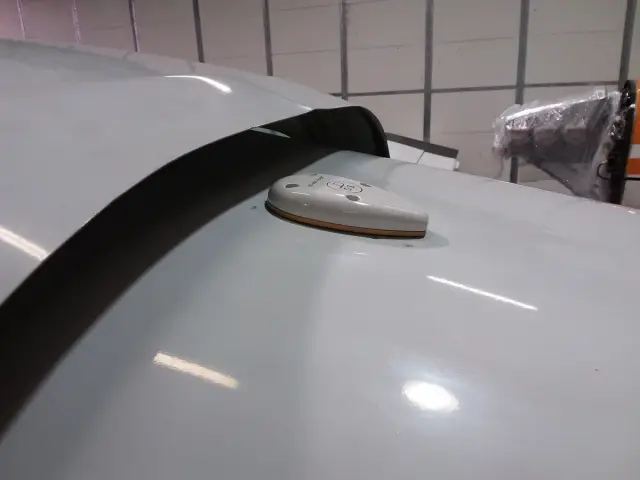

- GPS antenna installation
- External FLARM antenna
Quick view
Standby instruments
Garmin G5
Electronic flight instrument used here as a backup next to the main display.

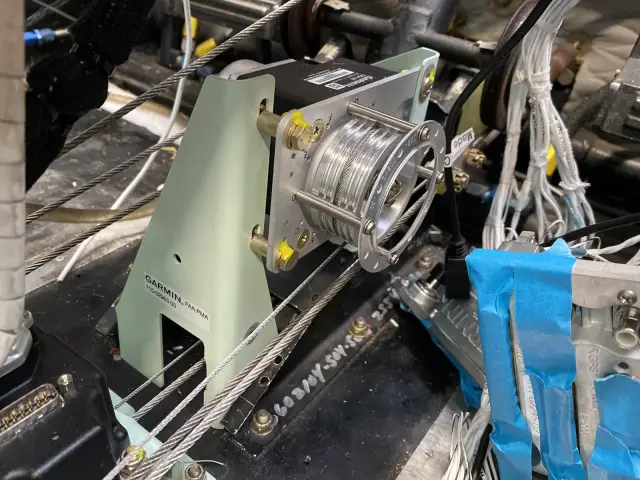

Autopilot
Garmin GFC 500
Digital autopilot that works with the new Garmin displays and holds altitude and course, with an optional yaw damper servo.
Panel and production

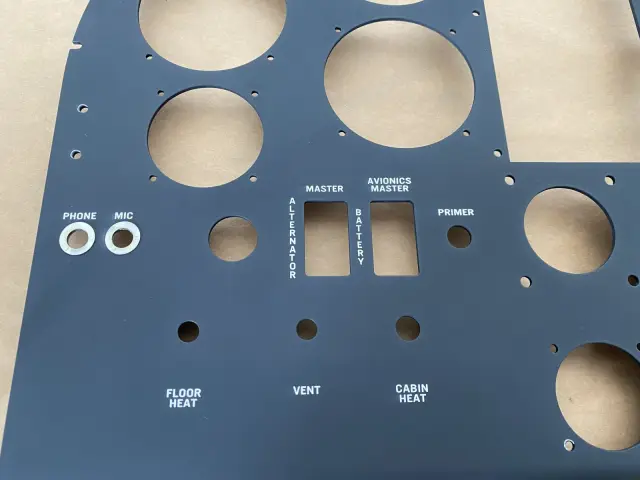

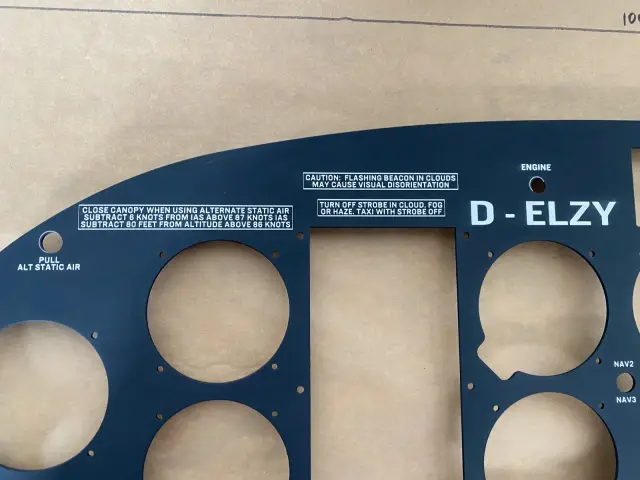

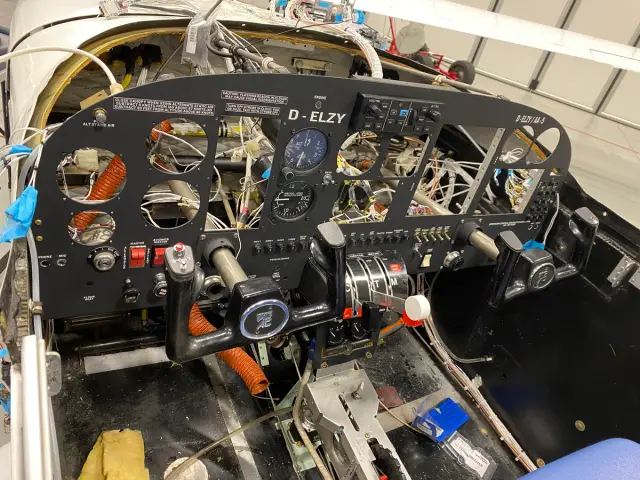

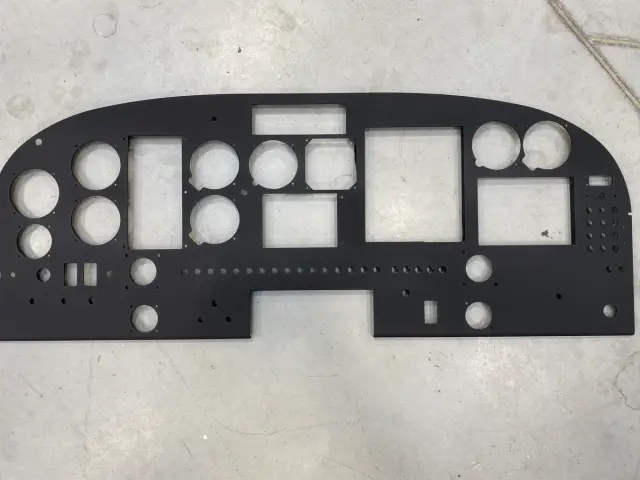

- Instrument panel produced and installed
- New wire harness produced and installed
Certification and paperwork
- Pitot-static check and IFR testing
- Electrical load change calculation
- Magnetic compensation
- Fuel tank calibration

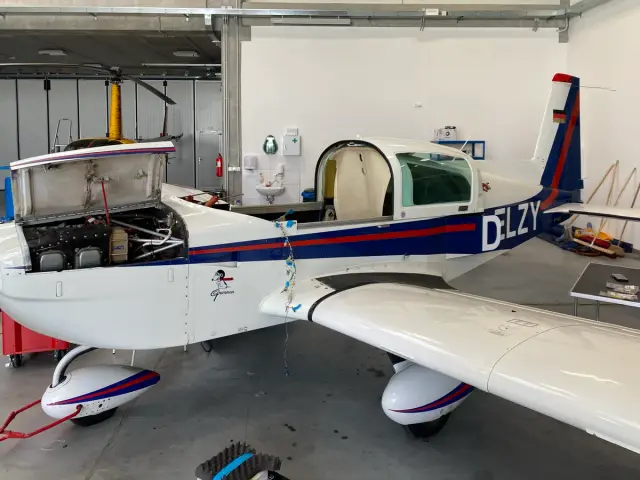

Project photos
