SATCOM
Cabin connectivity
The antenna, the radome and the STC.
Cabin SATCOM is the largest avionics STC family issued since 2020: Ka/Ku, Starlink-class, Gogo Galileo, Intelsat and similar. Where the OEM kit is not on an approved model list for the type, the antenna provisions, the structural data and the IFE interface come from Engineering.
Wi-Fi in the cabin is a separate file, so the dish and the cabin network are approved on their own terms.
- Design (DOA)EASA.21J.849
- Production (POA)CZ.21G.0075
- Part-145CZ.145.0094
What is included
Antenna provisions
Mounting, doublers and the structure that carries the antenna.
Radome and fairing structure
Structural data for the radome on the fuselage.
Cabin network interface
Interface to IFE and the cabin network when the system is activated.
Power and EMI
Electrical-load analysis and EMC substantiation.
Classification
Minor change or STC, then Part 145 fits it.
Wiring and kits
Harnesses and installation kits made in house.
Typical deliverables
- 1Installation drawings for antenna, radome and wiring
- 2Structural substantiation for the antenna mount
- 3Electrical-load analysis and installation instructions
- 4Instructions for continuing airworthiness and flight manual supplement
Example project

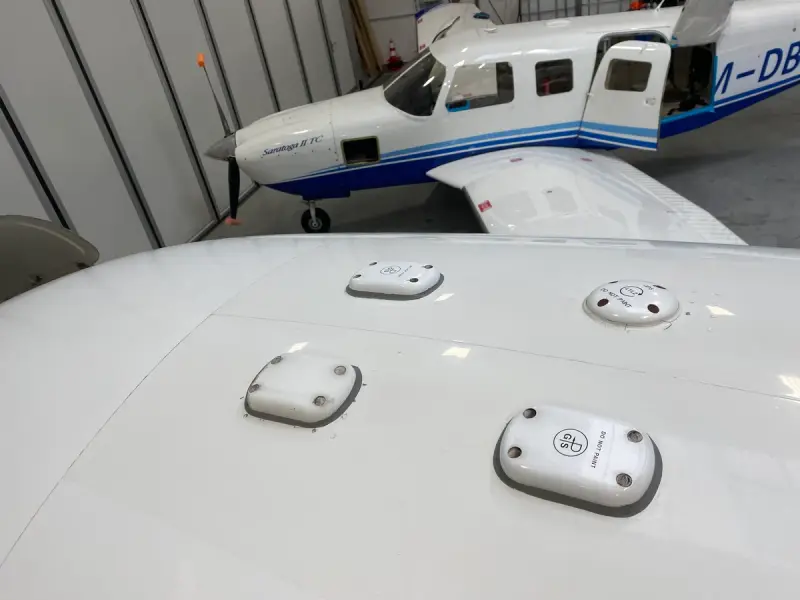

- Antennas
SA227-AC Metroliner
Replacement of transponder and COM antennas on a pressurised 19-seat commuter.
Good to know
Need design data or a certified part?
Send the aircraft, the change or the drawing. We reply within 1 business day.
