Camera mountings
Mission installations
The camera needs a hole, a mount and approved data.
Camera mountings designed under 21J: structure, interfaces and the installation pack. For complete ISR mission systems, our Defense & Government team takes the programme further.
- Design (DOA)EASA.21J.849
- Production (POA)CZ.21G.0075
- Part-145CZ.145.0094
What is included
Camera mounts
Structural and systems data for camera mounts.
Structure
Load and strength analysis for the mount and the airframe.
Power and data
Interface to the aircraft power and data bus.
Pods
Pod development and the installation around it.
Production
Handover to production and Part 145.
Flight test
Tested by our certified pilots when the programme needs it.
Typical deliverables
- 1Mount drawings and structural substantiation
- 2Power and data interface drawings
- 3Installation instructions and flight manual supplement
Example projects
- Camera
Hyperspectral camera on Cessna 208B Caravan
- Pod

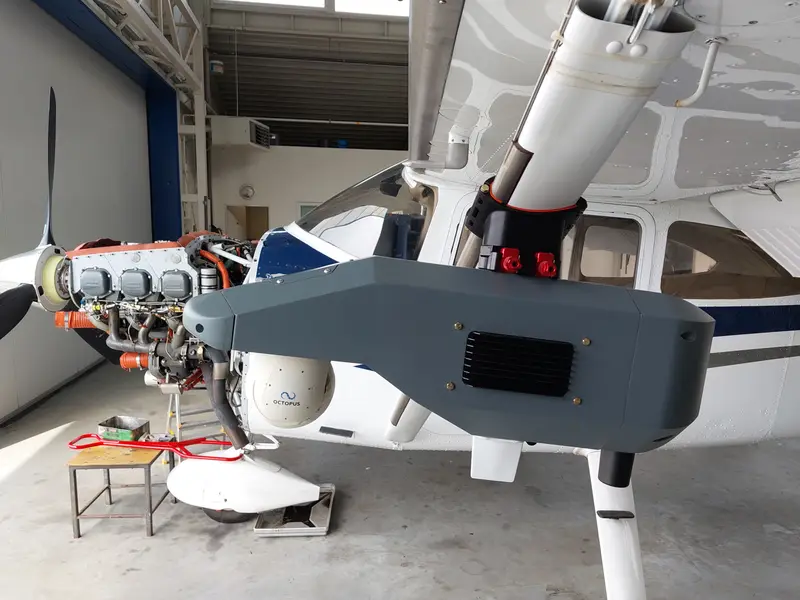

ISR pod for Cessna 182
Multifunctional autonomous intelligence, reconnaissance and surveillance pod.
- Pod
Light ISR pod for the Czech Air Force
EO/IR with MPU5 and 5G datalink.
- FLIR
Mi-17 harnesses and installation kit
For the FLIR camera and SX-16 searchlight, Czech Air Force.

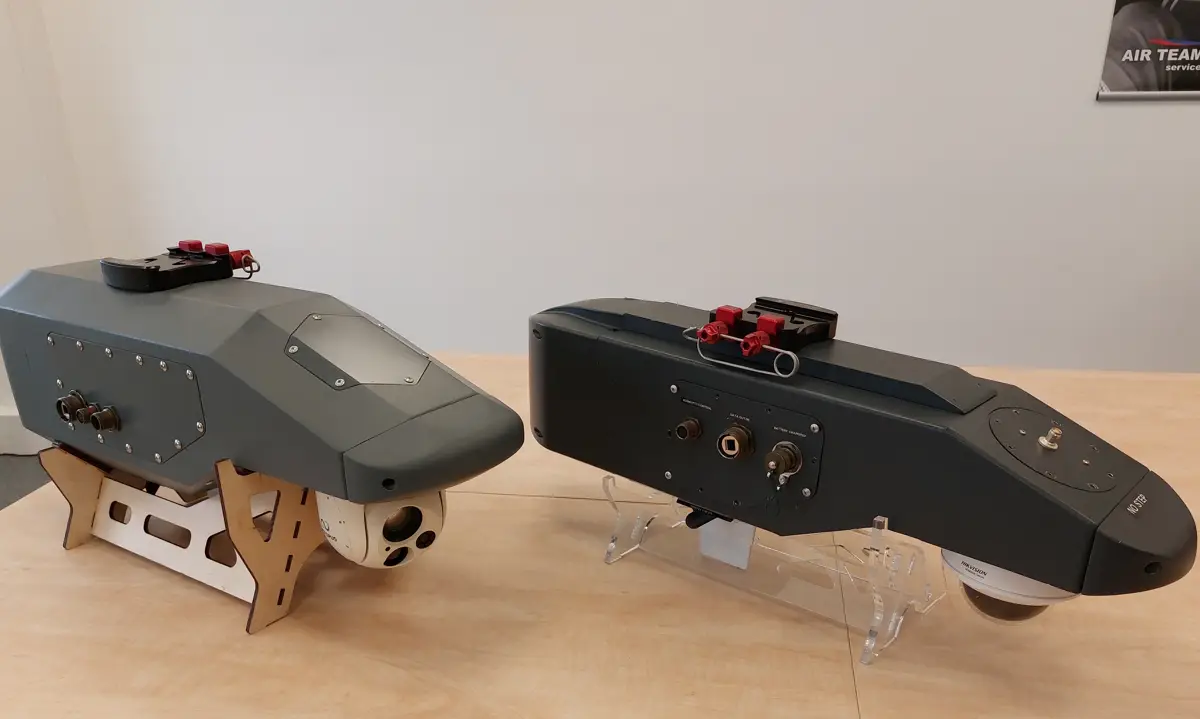

Pod housings
Need design data or a certified part?
Send the aircraft, the change or the drawing. We reply within 1 business day.
