Maritime & Border Patrol
- Contract to STC in 5 months
- Up to 7 h endurance
- LOS downlink up to 150 km
- Taiwan CAA STC · EASA and FAA certified
Patrol further, identify sooner and share the picture while the aircraft is still on station. AIR TEAM Intel turns a twin-engine aircraft into a certified maritime and border ISR platform, with radar, EO/IR, AIS and datalinks integrated, approved and handed over by one team.
Mission profiles
Maritime and EEZ patrol
Detect moving vessels with the SAR radar, identify them by AIS and inspect them with the EO/IR turret. Fishing zones and shipping lanes stay covered.
Land-border surveillance
Watch for illegal crossings and smuggling along long border lines, day and night, and pass the track to ground units.
Search and rescue over water
Find people with thermal imaging, radar and phone detection, then guide boats and helicopters with a live picture.
Multi-agency operations
Carry observers from several agencies, talk to coast-guard units and stream live video to a command centre.
Sensors and systems
We are technology-agnostic. The sensors below are the GOSHAWK fit; the OEM names are examples of the classes we integrate.
EO/IR identification
Gyro-stabilised turret for day and night identification: FLIR Star SAFIRE 380-HD on GOSHAWK, or the WESCAM MX, HENSOLDT ARGOS-II and Thales Euroflir classes.
SAR / GMTI / MMTI radar
All-weather radar for imaging and moving targets on land and sea. IMSAR NSP-7 on GOSHAWK; Leonardo, HENSOLDT and Thales classes on request.
AIS correlation
AIS receiver integrated with the radar and EO/IR, with vessel positions overlaid on the sensor video.
Signals and search payloads
Mobile phone detection, satellite phone monitoring and sonobuoy deployment support, specified per mission.
Datalinks and radios
Line-of-sight downlink up to 150 km, 3G/4G/5G and SATCOM beyond line of sight, and tactical radios to talk to units on the ground and at sea.
Operator workstation
Carbon-fibre workstation with a touchscreen mission control unit and onboard recording, quick to mount and demount for a role change.
Proven in service

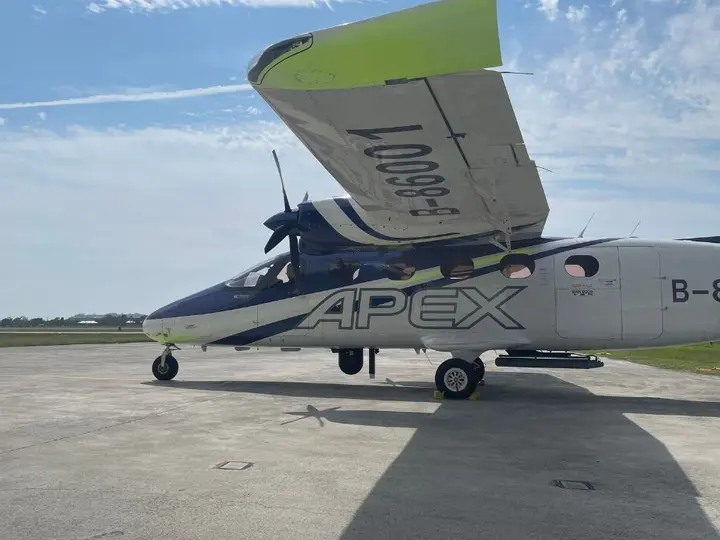

GOSHAWK: a complete ISR aircraft on the Tecnam P2012
AIR TEAM Intel delivered the full mission system on a Tecnam P2012 at Taitung Airport, from contract to a certified flying aircraft in five months: sensor installation, operator workstation, datalinks and the release of the aircraft as an airworthy platform, together with IMSAR and FLIR. The aircraft flies maritime patrol, border surveillance and search and rescue support.
- Platform
- Tecnam P2012 special-mission aircraft
- Certification
- Taiwan CAA STC (24 May 2025); EASA and FAA certified
- Contract to STC
- 5 months
- EO/IR
- FLIR Star SAFIRE 380-HD
- Radar
- IMSAR NSP-7 (SAR, GMTI, MMTI)
- Crew
- 2 pilots + 1 ISR operator, up to 6 on board
- Endurance
- Up to 7 hours
- LOS downlink
- Up to 150 km
Gallery

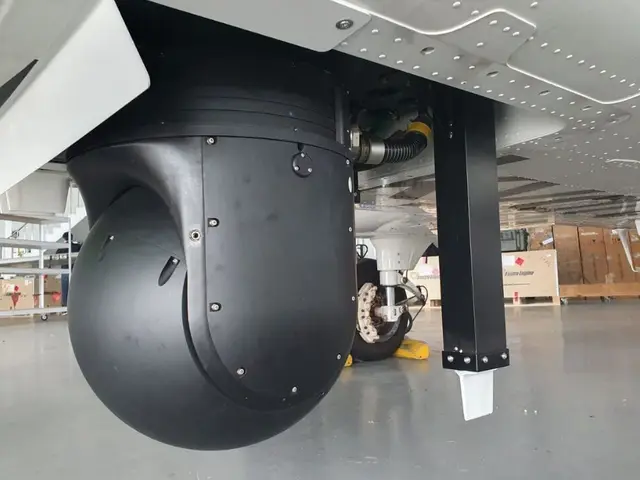

EO/IR turret

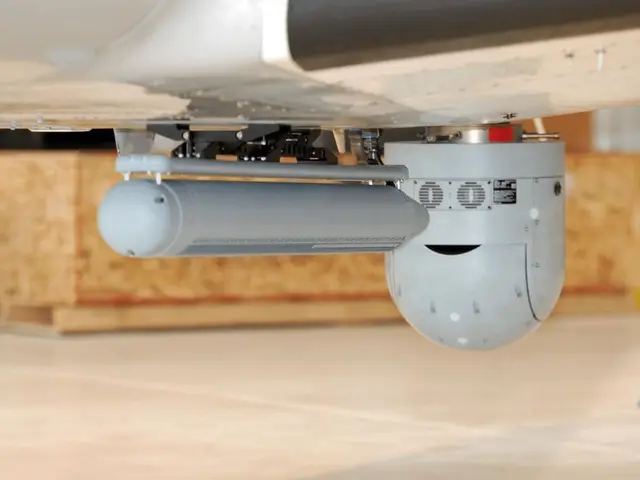

Radar pod and EO/IR turret

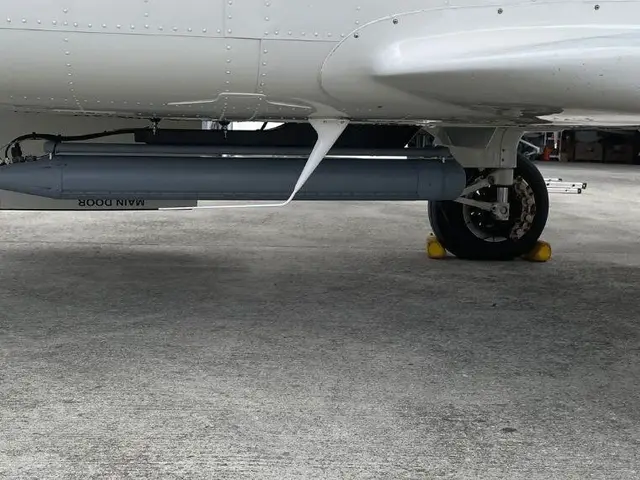

Radar pod under the fuselage

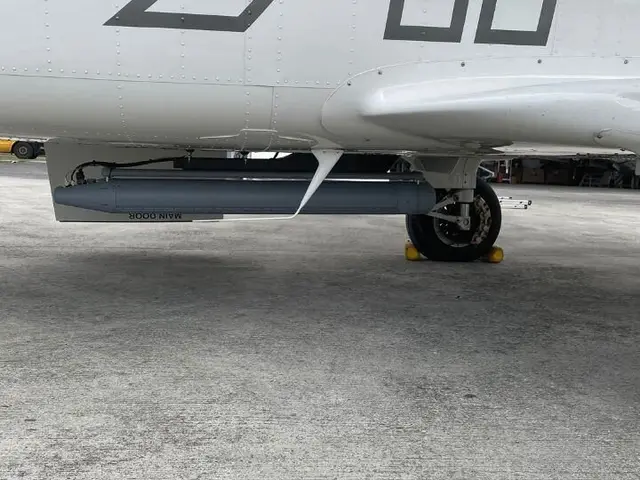

Radar pod fairing

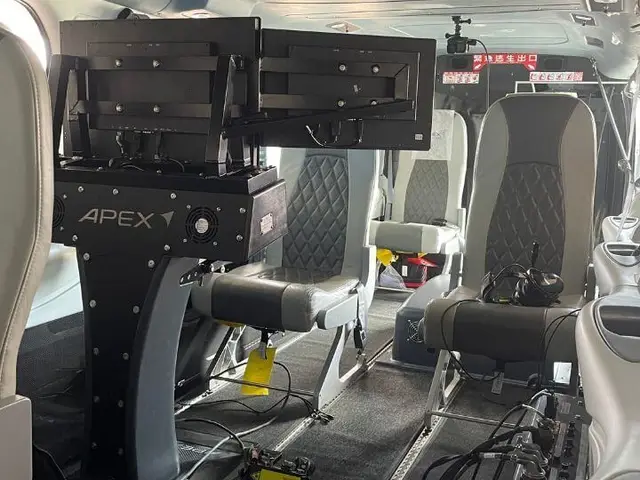

Cabin layout on seat rails

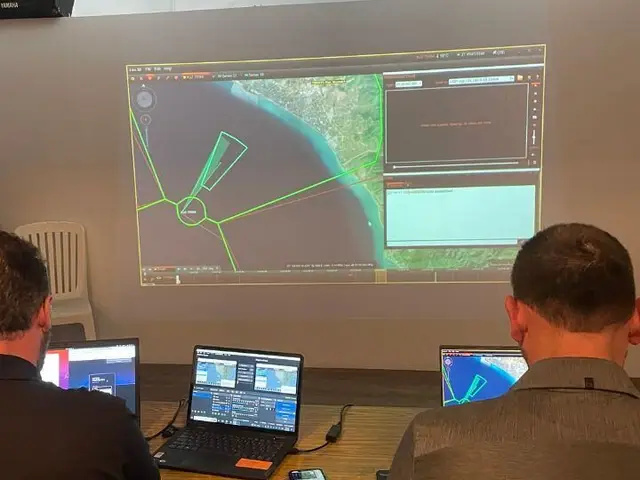

Ground station with the live mission picture

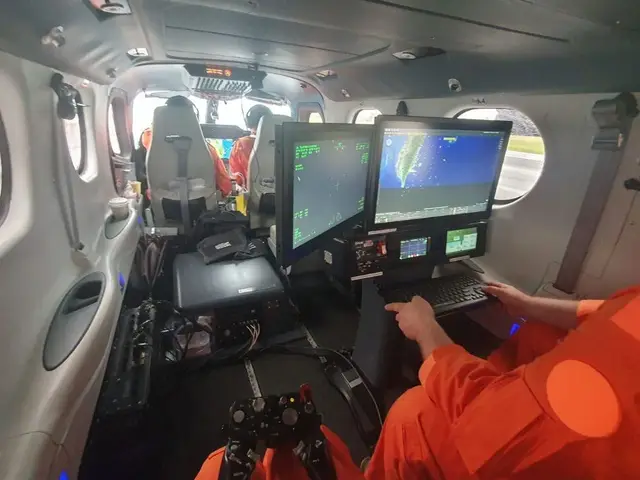

Operator workstation in flight
EO/IR picture on the mission display
Mission control unit
Key specifications
Platform: Tecnam P2012 special mission (GOSHAWK)
- Flight deck
- IFR certified, Garmin G1000
- Ceiling
- Up to 19,500 ft
- Mission endurance
- 5 to 7 hours, with enhanced onboard power
- Crew
- Minimum 2 pilots + 1 ISR operator, up to 6 persons on board
Sensors
- EO/IR
- FLIR Star SAFIRE 380-HD: Full-HD, multi-sensor, digital image blending
- Radar
- IMSAR NSP-7, Ku-band: SAR, GMTI, MMTI, ISAR; stripmap, spotlight, wide area, change detection
- Radar range (OEM data)
- Maritime surveillance beyond 340 km, SAR detection up to 55 km, resolution to 0.3 m
- AIS
- Integrated with the radar and EO/IR picture
- Further payloads
- Laser scanner, sonobuoy deployment support
Mission system and data
- Operator suite
- Carbon-fibre workstation, plug-and-play touchscreen MCU with built-in recording
- LOS downlink
- Real-time, up to 150 km via ground antennas
- BLOS
- 3G/4G/5G networks, SATCOM
- Radios
- Tactical radios for ground and coast-guard units
Search and signals payloads (OEM data)
- Mobile phone detection
- Lifeseeker class: 2G to 5G NSA, works without network coverage, SMS or voice to the phone
- Satellite phone monitoring
- BLACKFISH class: Iridium, Thuraya, Inmarsat IsatPhone Pro; up to 60 duplex or 120 simplex channels
Certification and support
Certified installation
Designed by AIR TEAM Engineering and approved as a change to the type. GOSHAWK went from contract to Taiwan CAA STC in five months.
Flight test
Ground tests, test flights and authority inspections before the aircraft is released for missions.
Crew training
Operator and mission training on the installed system, so crews are ready from the first sortie.
Maintenance and upgrades
Part-145 maintenance, an in-house avionics lab with OEM repair agreements, and sensor upgrades as the mission grows.
AIR TEAM Engineering designs the change under EASA design approval EASA.21J.849. AIR TEAM service installs and maintains it at Kunovice (LKKU) under EASA Part-145 CZ.145.0094 and Military Part-145 CZE.145.1004, and manufactures parts under POA CZ.21G.0075. Defence quality management is certified to NATO AQAP 2110, the quality system to ISO 9001:2015. ITAR and military trade licences are in place. All approvals →
