Police Helicopter

Police Helicopter

  • NVIS to MIL-STD-3009
  • Downlink up to 150 km
  • EASA Part-145 CZ.145.0094
  • Military Part-145 CZE.145.1004

Give your crews a helicopter that finds, follows and lights up the scene, and puts the picture in front of the commander on the ground. AIR TEAM Intel fits the complete police mission kit to the helicopters you already fly and certifies it as a change to the type.

Mission profiles

  • Pursuit and vehicle follow

    Hold a vehicle or suspect in the turret at standoff and pass the live picture to ground units.

  • Missing-person search

    Thermal imaging, phone detection and direction finding narrow the search area, by day and at night.

  • Crowd and event overwatch

    Monitor large gatherings and traffic and give the incident commander a live view from above.

  • Night scene illumination

    Steerable searchlight slaved to the task, with an NVG-compatible cockpit so the crew keeps its night vision.

Sensors and systems

One integrated kit instead of separate boxes. The OEM names are examples of the classes we integrate.

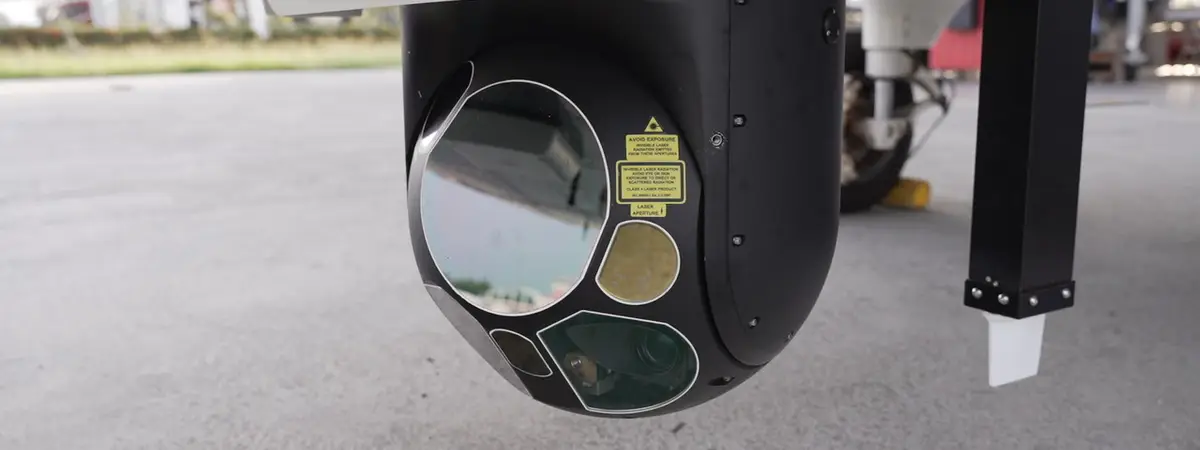

  • EO/IR turret

    Compact gyro-stabilised turret for day and night tracking: TrakkaCam TC-300, WESCAM MX-10 / MX-15 or FLIR Star SAFIRE 380-HDc class.

  • Searchlight

    Steerable searchlights and landing lights such as TrakkaBeam A800 or Spectrolab Nightsun SX16, on the same work order as the turret.

  • Digital moving map

    Map with the sensor footprint overlaid. The operator can cue the camera from the map and see where it looks.

  • Downlink and radios

    Live EO/IR video to the ground commander or mobile units, tactical radios, and onboard recording for evidence and debrief.

  • Direction finding and phone detection

    Direction finders in the Collins DF-500, Chelton DF-935 or Rhotheta RT-600 class, and mobile phone detection for search tasks.

  • NVG-compatible cockpit

    Instrument lighting, displays and external lights modified to NVIS standards so goggles are not washed out.

Proven in service

GOSHAWK: a complete ISR aircraft on the Tecnam P2012

The operator workstation, mission control unit, EO/IR integration and downlink on a police helicopter come from the same AIR TEAM Intel suite certified on GOSHAWK, a Tecnam P2012 that flies border surveillance and search and rescue support.

Gallery

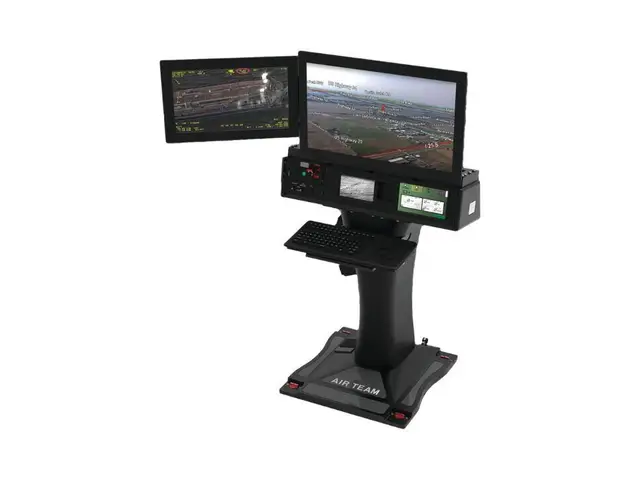

  • Operator workstation

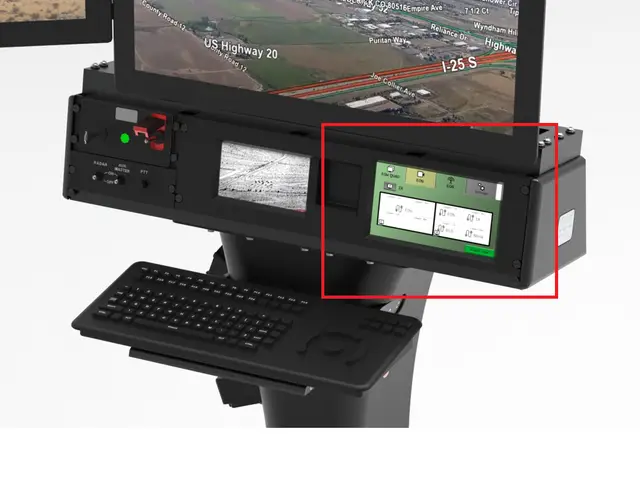

  • Mission control unit

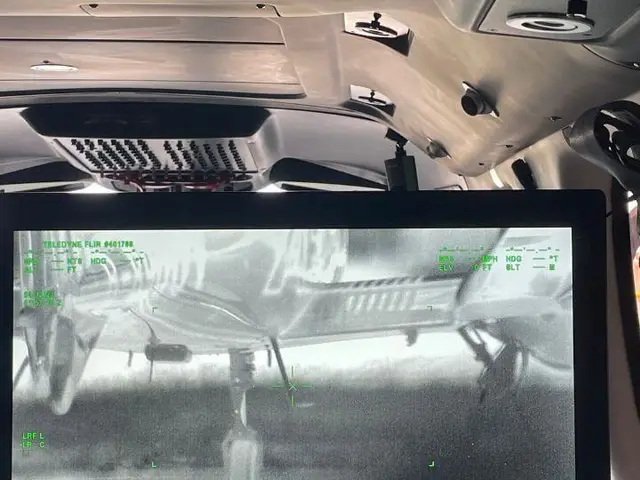

  • Thermal picture on the mission display

Equipment we integrate

Manufacturer images of equipment classes we integrate, shown for illustration.

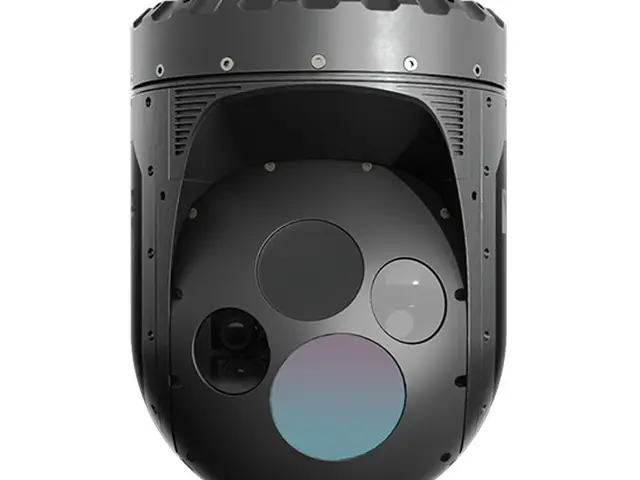

  • TrakkaCam TC-300 EO/IR camera (image: Trakka Systems)

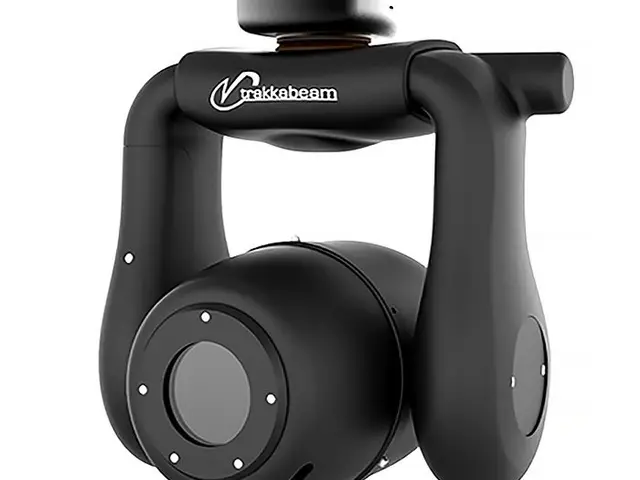

  • TrakkaBeam A800 searchlight (image: Trakka Systems)

  • Star SAFIRE 380-HD class turret (image: Teledyne FLIR)

Key specifications

Mission kit

EO/IR
TrakkaCam TC-300, WESCAM MX-10 / MX-15, FLIR Star SAFIRE 380-HDc class
Lights
TrakkaBeam A800, Spectrolab Nightsun SX16 class searchlights; steerable landing lights
Moving map
GeoTIFF, ECW, JPEG2000, SHP and VMAP charts; sensor footprint on the map; camera cueing from the map
Direction finding
Collins DF-500, Chelton DF-935, Rhotheta RT-600 class, including 121.5 / 243 / 406 MHz emergency beacons

Night operations and data

NVIS
Cockpit lighting, displays and external lights to MIL-STD-3009
Downlink
Line of sight up to 150 km via ground antennas; 3G/4G/5G where coverage exists
Recording
Onboard recorder for the full mission, removable SD cards for debrief
Phone detection (OEM data)
Lifeseeker class: 2G to 5G NSA, works without network coverage, SMS or voice to the phone

Certification and support

  • Certified on your type

    AIR TEAM Engineering designs the installation for the helicopter type and takes it through approval as a change.

  • Hangar work at Kunovice

    Installation and release to service under Part-145, with helicopters (A3) on the approval.

  • Crew training

    Operator training on the turret, map, downlink and console before the first tasking.

  • Maintenance and support

    Part-145 maintenance and an in-house avionics lab with NVG modification support.

AIR TEAM Engineering designs the change under EASA design approval EASA.21J.849. AIR TEAM service installs and maintains it at Kunovice (LKKU) under EASA Part-145 CZ.145.0094 and Military Part-145 CZE.145.1004, and manufactures parts under POA CZ.21G.0075. Defence quality management is certified to NATO AQAP 2110, the quality system to ISO 9001:2015. ITAR and military trade licences are in place. All approvals →
