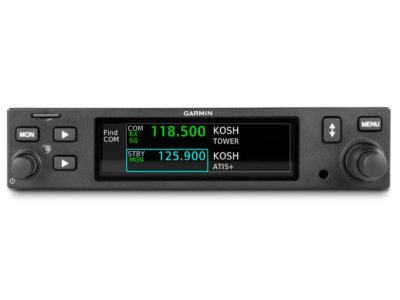

Enhance Your Cockpit Communication with Garmin GTR 205 COM Radio

Upgrade your communication setup with the sleek and cost-effective Garmin GTR 205 COM Radio. Engineered for modern aviators, this slimline radio offers advanced communication capabilities to elevate your flying experience. Stay connected and communicate with confidence using the GTR 205's intuitive interface and robust features. Whether you're navigating busy airspace or coordinating with ground control, the GTR 205 ensures clear and reliable communication every time. Elevate your cockpit communication with Garmin's trusted reliability and cutting-edge technology.

Features:

  • SLIM 1.3” BEZEL HEIGHT: Replace similar-sized legacy radios, and save valuable panel space in tighter installations.

  • FULL-COLOR LCD DISPLAY: Enjoy a large high-resolution display with pilot-selectable brightness controls.

  • INTUITIVE USER INTERFACE: Interact with familiar controls found on other Garmin avionics, including concentric knobs, 5 back-lit keys and a dedicated volume/power knob.


VHF COMM TRANSCEIVER

The 2,280-channel capable VHF COMM radio offers standard 10 watts (or optional 16 watts with enablement) of transmit power plus pilot-selectable 25 kHz or 8.33 kHz channel spacing and automatic or manual squelch. Swap your active and standby frequencies with a single touch of a button.

  • FIND A FREQUENCY - Enter an airport identifier, and let the GTR 205 radio look up frequencies for that location (tower, ground, ATIS, clearance delivery, etc.) from its worldwide database. Then send the selected frequency to the standby position.




  • FREQUENCY ID - Pair with your compatible GPS source to enable frequency ID and show your tuned frequency’s identifier and type, including tower, ATIS, center and more. So you always know who you’re talking to.

  • STANDBY COMM MONITORING - Listen to a standby frequency, such as ATIS, without leaving your active channel.


INSTANT RECALL

With frequency memory and recall, you can quickly tune your most frequently or recently used frequencies. Plus, holding down the volume knob will dial up the 121.5 emergency frequency.

  • BUILT-IN TIMER - Use the built-in timer to assist with approaches, holds and other assigned maneuvers — with the option to count up or count down.

  • NVG COMPATIBLE - For demanding night missions, GTR 205 is available with an optional NVIS enablement.

  • REMOTE TUNING - Pair the GTR 205 radio with your G3X Touch™ flight display, and remotely tune your radio via your flight display touchscreen.


Specifications

Performance:

Communication channels: 760 with 25 kHz spacing; 2280 channels with 8.33 kHz spacing
Frequency range: 118.000 to 136.992 MHz
Transmit power: 10 watts (16 watts with optional enablement)
Input voltage range: 9 to 33 VDC
Operating temperature range: -20 to +55 C
Certifications: TSO C169a (transmitting and receiving), TSO C128a (stuck mic)

Physical:

Dimensions: 1.35”H x 6.25”W (3.43 cm x 15.88 cm)
Weight: 2.2 lbs (1 kg) unit only; 2.8 lbs (1.4 kg) with mounting rack and connectors
Depth: 10.32 inches (26.21 cm) behind panel, including mounting rack and connectors
