AEROSPEC AV-17 (CI-122) COM antenna

AEROSPEC AS-AV-17 COM Antenna – Alternative to AV-17 and CI-122

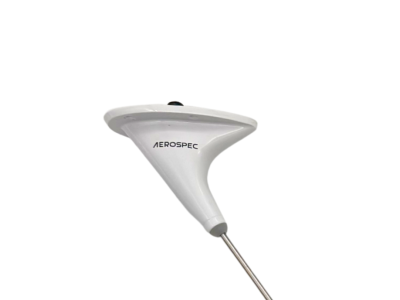

AEROSPEC AS-AV-17 is a VHF communication antenna designed for installation on the underside of the aircraft fuselage. With its bent, low-profile design it provides a reliable radiation pattern for air-to-ground communication and is particularly suitable for helicopters and low-wing aircraft. Structurally and functionally, it matches the AV-17 and CI-122 models.

The antenna uses a four-bolt mounting base and a standard BNC connector, ensuring straightforward installation and full compatibility with common avionics systems. It is qualified for operation at speeds up to 350 mph and altitudes up to 50,000 ft.

• Application: Air-to-ground VHF communication
• Frequency Range: 118–137 MHz
• Impedance: 50 Ohms
• VSWR: ≤ 3.0 : 1
• Polarization: Vertical
• Radiation Pattern: Omnidirectional
• Connector: BNC (female)
• Power Capacity: 25–50 Watts
• Height: approx. 8.75 in (22 cm)
• Weight: ~0.5–0.75 lbs (8–12 oz)
• Construction: Fiberglass housing with robust base, white finish
