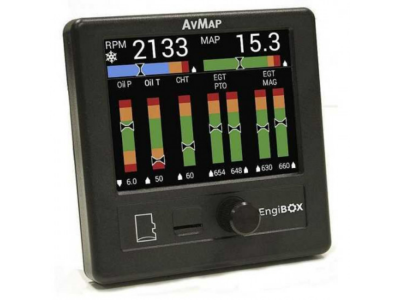

AvMap EngiBOX

EngiBOX is a light and compact engine monitor displaying:

Exhaust Gas Temperature (EGT)

Revolutions per Minute (RPM)

Manifold Pressure (MAP)

Oil Pressure

Oil Temperature / Air Temperature

Cylinder Head Temperature (CHT) / Coolant Temperature (CT)

*Instant Support Service is currently offered by Luciano Sorlini SPA in: Albania, Bosnia and Herzegovina, Croatia, Cyprus, Gibraltar, Greece, Israel, Italy, Lybia, Malta, Pakistan, Portugal, San Marino, Serbia, Spain, Turkey, Vatican City

EngiBOX is compatible with the following sensor probes:

4 x INPUT Thermocouple (type K)

Exhaust Gas Temperature (EGT) (2 Stroke / 4 Stroke)

Cylinder Head Temperature (CHT) (2 Stroke)

2 x INPUT Thermoresistance (PT-100)

Air Temperature, Coolant Temperature (2 Stroke)

Oil Temperature, Cylinder Head Temperature / Coolant Temperature (4 Stroke)

1 x INPUT Oil Pressure pick-up (4-20 mA Rotax 456-180 or equivalent)

Oil Pressure (4 Stroke)

Note: Measuring range: 0.75 to 10.75 bar

1 x RPM pick-up

Measuring range: 100 to 9990 rpm

1 x INPUT Manifold Pressure

Measuring range: 200 to 2500 hPa

Note: sensor present on EngiBOX

Specifications:

Hardware

Dimensions 95 x 95 x 88 mm

Fitting standard 3-1/8" panel hole

Weight: 250 g

Display: 3.5” colour LCD, with anti reflective coat 320×240 pixels, 500 cm/m2

Micro SD slot

Real Time Clock

DB15 connector with antivibration lock system to support: 4 x Thermocouples sensor 2 x PT100 sensor 1 x 4-20 mA pressure sensor 1 x RPM 1 x Serial connection (Probes Not Included)

Manifold pressure sensor

Bluetooth Low Energy

Power Input range: 10-35 VDC

Current consumption @ 12VDC: 150 mA MAX

Operating Temperature range: -20°C / +70°C

Software

Wizard driven engine Initialization

Engine data displayed in two alternative views

Graph page for each engine parameter

Clock page including flight time, total lifetime, time since overhaul

Data registration on internal memory and data export to micro SD or EngiBOX mobile App

Compatible Engines

2 Stroke Air cooled Rotax 447 UL SCDI Rotax 503 UL DCDI

2 Stroke Liquid cooled Rotax 582 UL DCDI Rotax 618 UL DCDI

4 Stroke Liquid cooled Rotax 912 DCDI series Rotax 912S DCDI series Rotax 914 DCDI series
